Name: Thermal conductivity properties

Display Field: GEOL_DESC1

Type: Feature Layer

Geometry Type: esriGeometryPolygon

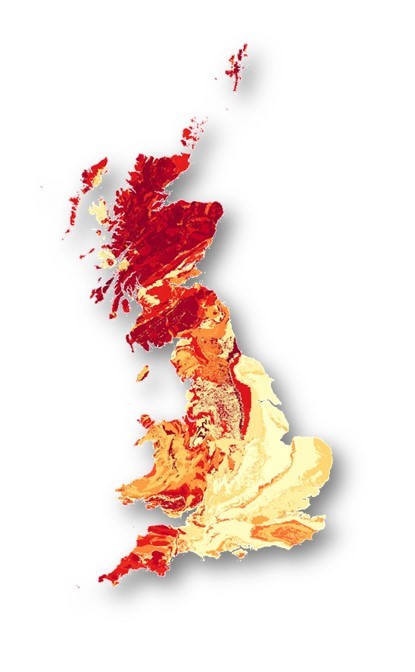

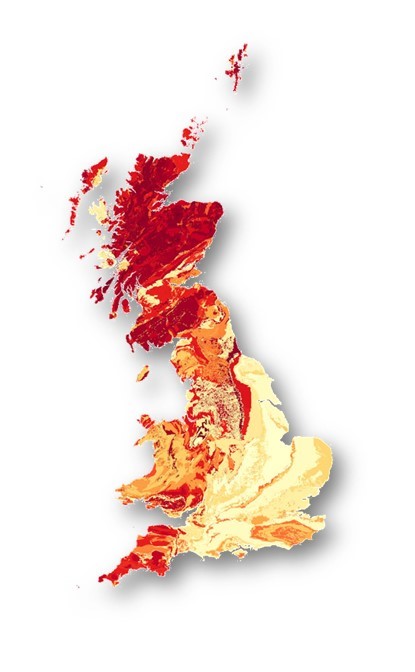

Description: Data identifying landscape areas (shown as polygons) attributed with geological descriptions and thermal properties of geological materials. The scale of the data is 1:250 000 scale for the Thermal Properties V1 dataset. The Thermal Properties V1 (hex) dataset is a tessellated vector polygon version of the same data, using hexagons of area 2.56km2. Onshore coverage is for Great Britain and the Isle of Man (for the legacy dataset, GB only for the Hex cell coverage). This dataset shows thermal properties relating to bedrock beneath our feet. The information can be used to assess the potential for closed and open loop ground source heat pumps across, or deeper geothermal assessments, across the United Kingdom. The attribution and spatial data underpinning the model are that which is described and shown by Rollin (1987) and Gale (2004, 2005).The information is presented as either:a vector-based, irregular polygon coverage at 1:250 000 scalea vector-based, hexagonal, cellular grid (side length 1km, area c.2.6 Km2)Each raster/vector cell is attributed with a range of geological properties including modelled values for Thermal conductivity, thermal diffusivity, specific heat capacity and density. The data are available in vector format (containing the geometry of each feature linked to a database record describing their attributes) as ESRI shapefiles and are available under BGS data licence.

Copyright Text:

Default Visibility: false

MaxRecordCount: 2000

MaxSelectionCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: false

Supports Statistics: false

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 3500.0
YMin: 2598.076
XMax: 658000.0
YMax: 1222827.87
Spatial Reference: 27700  (27700)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Class Breaks Renderer:
Field: WTAV_TC
Min. Value: -1.0
ClassBreakInfos:
• Class Maximum Value: 0
  Label: -1 - 0
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [225, 225, 225, 255]
  Outline:
  Style: esriSLSSolid
  Color: [110, 110, 110, 0]
  Width: 0
• Class Maximum Value: 0.5
  Label: 0.0 - 0.5
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [245, 220, 0, 255]
  Outline:
  Style: esriSLSSolid
  Color: [110, 110, 110, 0]
  Width: 0
• Class Maximum Value: 1
  Label: 0.5 - 1
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [245, 196, 0, 255]
  Outline:
  Style: esriSLSSolid
  Color: [110, 110, 110, 0]
  Width: 0
• Class Maximum Value: 1.5
  Label: 1.0 - 1.5
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [245, 171, 0, 255]
  Outline:
  Style: esriSLSSolid
  Color: [110, 110, 110, 0]
  Width: 0
• Class Maximum Value: 2
  Label: 1.5 - 2
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [245, 147, 0, 255]
  Outline:
  Style: esriSLSSolid
  Color: [110, 110, 110, 0]
  Width: 0
• Class Maximum Value: 2.5
  Label: 2.0 - 2.5
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [245, 122, 0, 255]
  Outline:
  Style: esriSLSSolid
  Color: [110, 110, 110, 0]
  Width: 0
• Class Maximum Value: 3
  Label: 2.5 - 3
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [245, 98, 0, 255]
  Outline:
  Style: esriSLSSolid
  Color: [110, 110, 110, 0]
  Width: 0
• Class Maximum Value: 3.5
  Label: 3.0 - 3.5
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [245, 73, 0, 255]
  Outline:
  Style: esriSLSSolid
  Color: [110, 110, 110, 0]
  Width: 0
• Class Maximum Value: 4
  Label: 3.5 - 4
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [245, 49, 0, 255]
  Outline:
  Style: esriSLSSolid
  Color: [110, 110, 110, 0]
  Width: 0
• Class Maximum Value: 4.5
  Label: 4.0 - 4.5
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [245, 24, 0, 255]
  Outline:
  Style: esriSLSSolid
  Color: [110, 110, 110, 0]
  Width: 0
• Class Maximum Value: 5
  Label: 4.5 - 5
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [245, 0, 0, 255]
  Outline:
  Style: esriSLSSolid
  Color: [110, 110, 110, 0]
  Width: 0
Transparency: 0
Labeling Info:

Feature Draw Order:

N/A

Advanced Query Capabilities:

Supports Statistics: false
Supports OrderBy: false
Supports Distinct: false
Supports Pagination: false
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: false
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: false
Supports Having Clause: false
Supports Count Distinct: false
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: false
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• FID ( type: esriFieldTypeOID, alias: FID )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• UUID ( type: esriFieldTypeDouble, alias: UUID )
• GEOL_DESC1 ( type: esriFieldTypeString, alias: Geology description 1, length: 250 )
• GEOL_DESC2 ( type: esriFieldTypeString, alias: Geology description 2, length: 250 )
• GEOL_DESC3 ( type: esriFieldTypeString, alias: Geology description 3, length: 250 )
• MINTC ( type: esriFieldTypeDouble, alias: Minimum thermal conductivity )
• MAXTC ( type: esriFieldTypeDouble, alias: Maximum thermal conductivity )
• WTAV_TC ( type: esriFieldTypeDouble, alias: Average thermal conductivity )
• MINTD ( type: esriFieldTypeDouble, alias: Minimum thermal diffusivity )
• MAXTD ( type: esriFieldTypeDouble, alias: Maximum thermal diffusivity )
• WTAV_TD ( type: esriFieldTypeDouble, alias: Average thermal diffusivity )
• MINSH ( type: esriFieldTypeDouble, alias: Minimum specific heat )
• MAXSH ( type: esriFieldTypeDouble, alias: Maximum specific heat )
• WTAV_SH ( type: esriFieldTypeDouble, alias: Average specific heat )
• MIND ( type: esriFieldTypeDouble, alias: Minimum density )
• MAXD ( type: esriFieldTypeDouble, alias: Maximum density )
• VERSION ( type: esriFieldTypeString, alias: VERSION, length: 35 )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

  Iteminfo   Thumbnail   Metadata
